It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

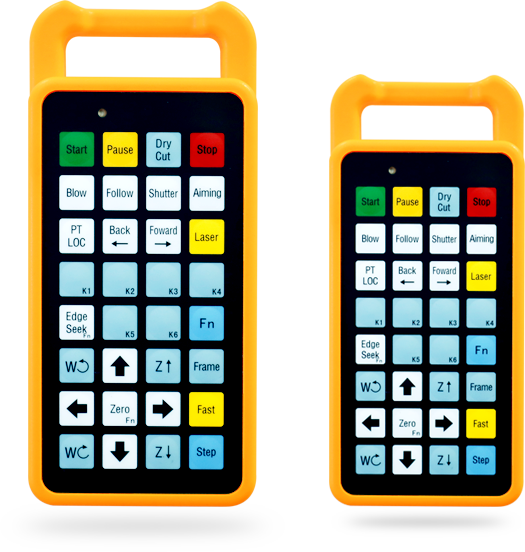

It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
|Laser power||500W 750W 1000W 2000W 3000W 4000W 6000W 8000W(Optional)|
|Machining range||Hold diameter: Φ20mm-Φ300mm|
|Repeat positioning accuracy||±0.02mm/m|
|Specified voltage and frequency||380V/50Hz/60Hz|
Take the oil industry for example, the main route of oil transport
is the pipeline, and because of the characteristics of the oil itself,
leading to the high quality requirements of the pipeline. While fiber
laser cutting machine can achieve the pipes multi-angle precision processing
to fulfil the oil transportation requirement.

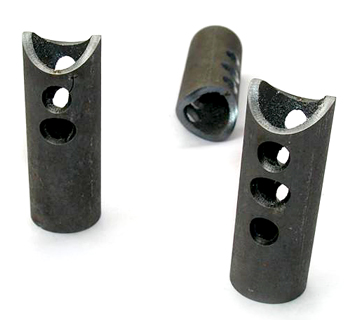

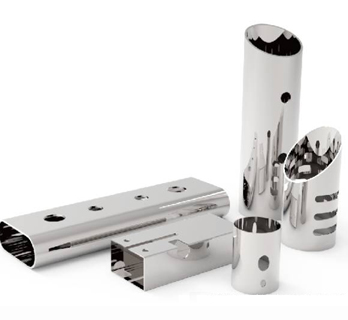

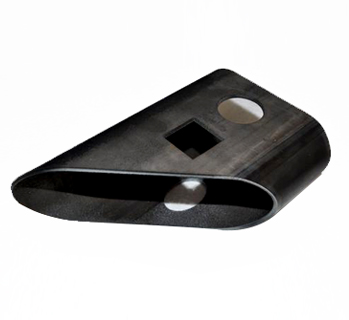

Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.
