Auto Focus Laser Cutting Head

Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolongthe lifespan of the electrical components.
Automatic Thermostat
The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

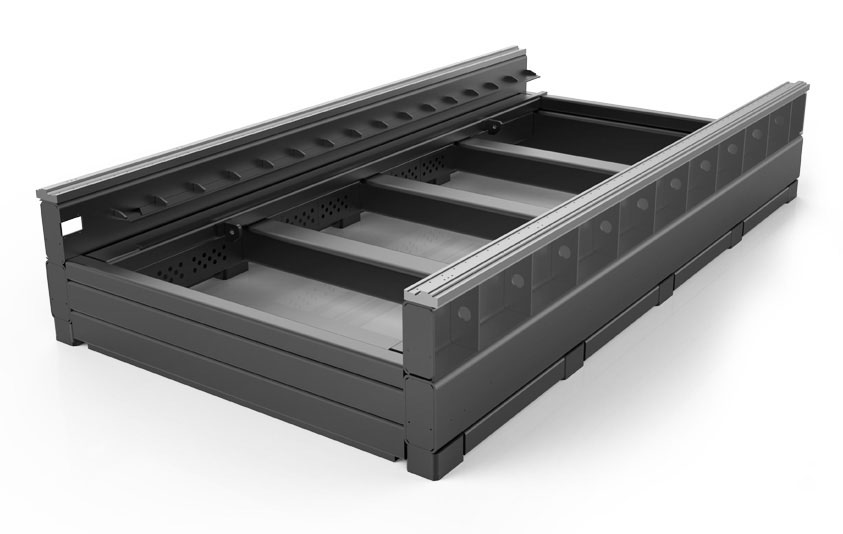

Plate Welding Heavy Work Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
High strength, stability, tensile strength, ensuring 20 years of use without distortion;Thickness of rectangular pipe wall is 10mm and weights 4500 kg.

Machine Advantage

Safety and No Pollution
With a fully enclosed design. The observation window adopts an European CE Standard laser protective glass. The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally friendly
IPAD Designing Screen
Use the high definition toughened glass screen, more exquisite and delicate, the operation is smoother.
Transmission And Precision.
Equipped with Japan YASKAWA servo motor, Hiwin rail guide and France Motoreducer. The positioning accuracy of the machine can be 0.02mm.

Industry Applications

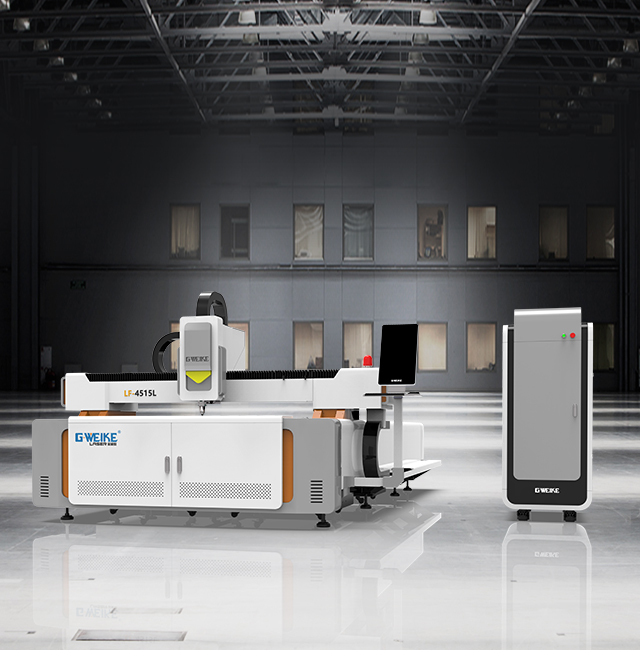

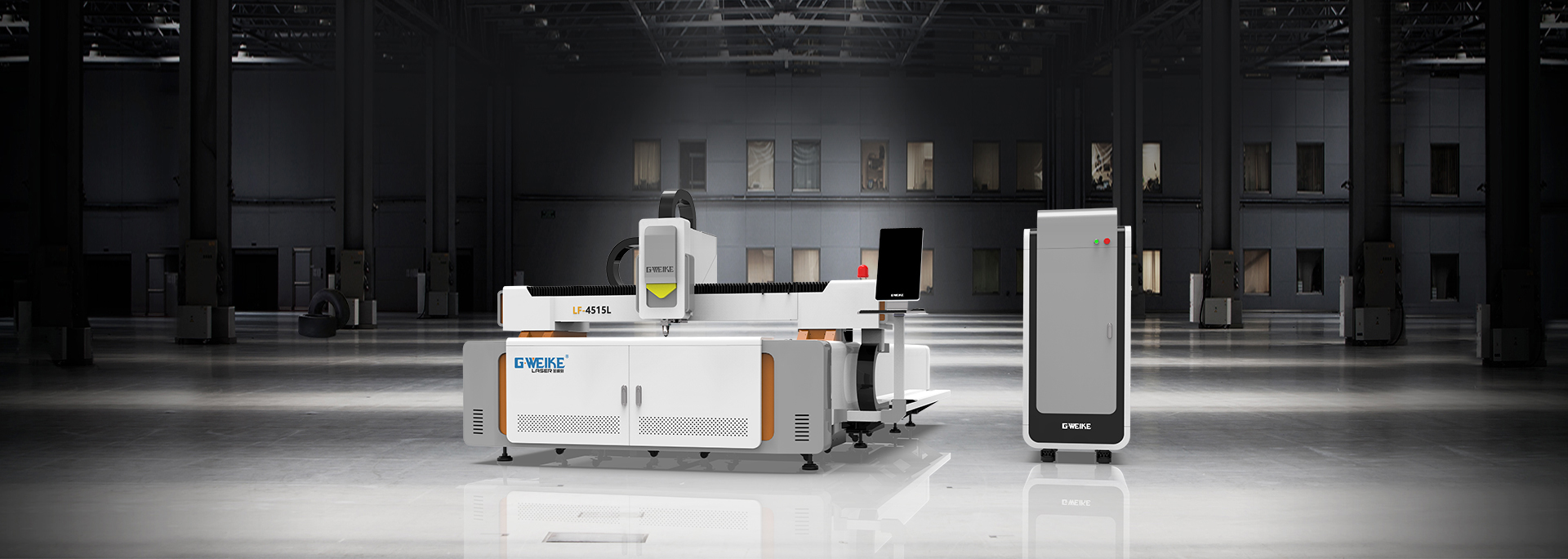

LF4515L fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life. Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Technical Parameters

Machine model	LF4515L
Laser power	500W 750W 1000W 2000W 3000W(Optional)
Dimensions	4440* 2500*1860mm
Working area	3000mm x 1500mm
Repeat positioning accuracy	±0.02mm
Maximum speed	80m/min
Max. acceleration	1.0G
Voltage and frequency	380V 50Hz/60Hz/60A
