GH Series Learn more

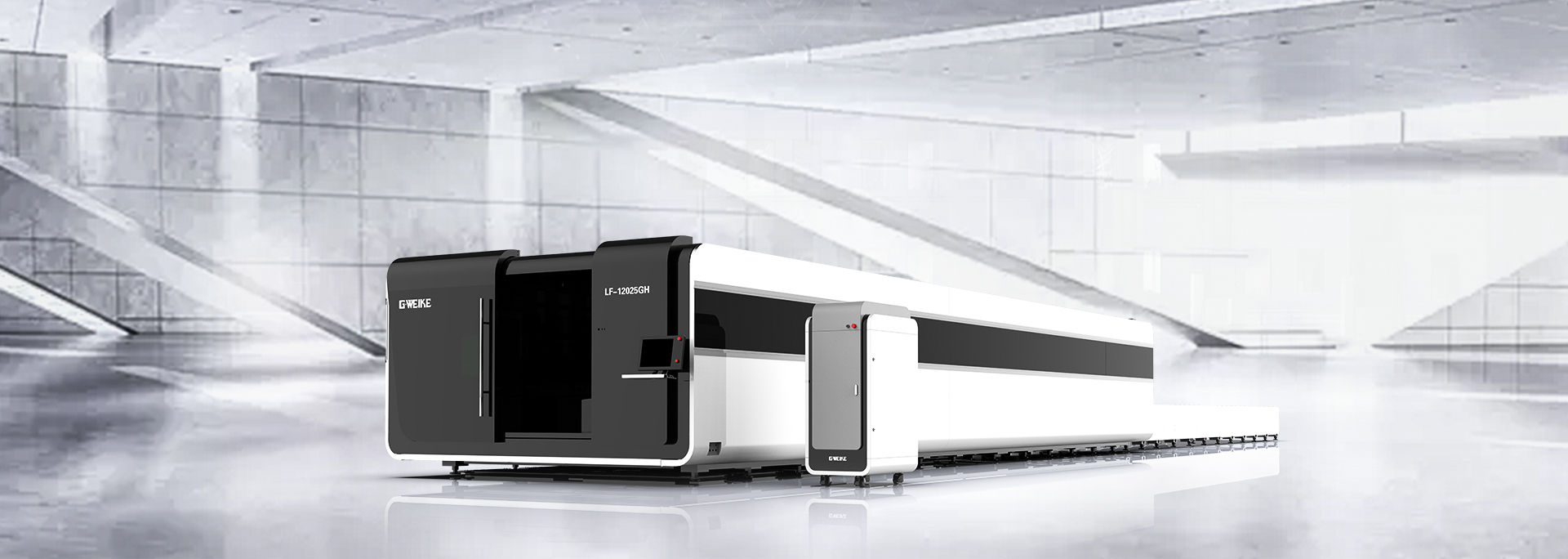

HIGH POWER WHOLE COVER
FIBER LASER CUTTING MACHINE

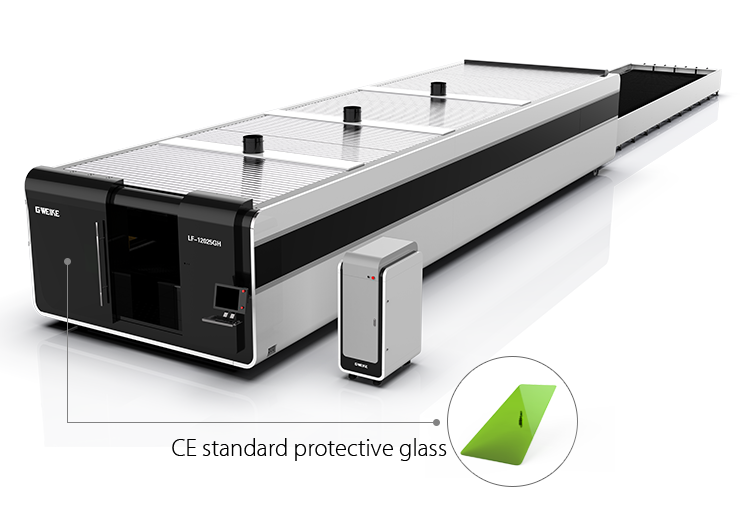

Safety and No Pollution

    Safety and No Pollution

  • With a fully enclosed design;
  • The observation window adopts an European CE Standard laser protective glass;
  • The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
  • The weight of machine is 7500kg.

    12000W IPG Fiber Lasers Source

  • World Famous Brand

    GWEIKE laser cutting machine YLS-CUT series high power fiber laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.

  • Long Service Life

    The world leading IPG laser has stable performance, the service life can reach 100000 hours, and the overall quality of the equipment can be guaranteed safely.

  • Stable Cutting Performance

    Fiber laser source can produce excellent beam quality, finer cutting lines, higher working efficiency and better machining quality. Fully closed constant temperature working environment makes laser source more effective to ensure the stable operation.
12000W IPG Fiber Lasers Source

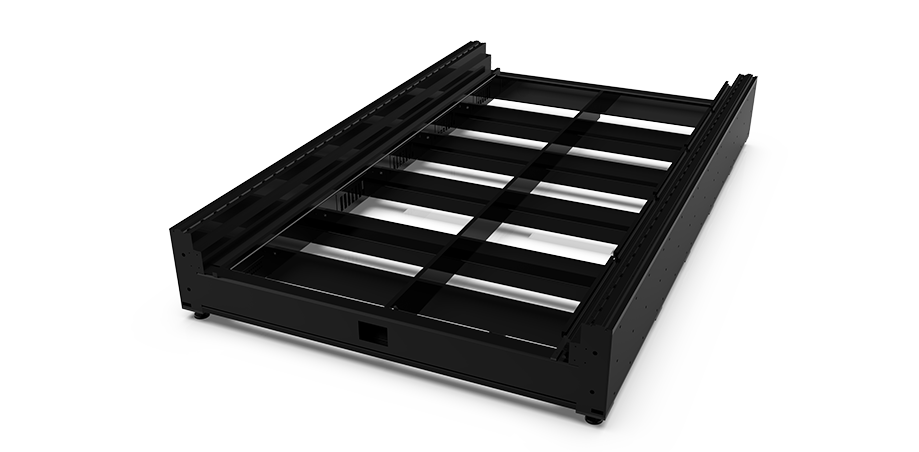

Plate Welding Heavy Work Bed

    Plate Welding Heavy Work Bed

  • Annealed And Heat Treated

    Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in weight is very beneficial to the laser cutting machine cutting speed.

  • Innovative Four Slings Working Bed

    For reducing damage to the work bed during laser working, G.WEIKE Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled.

The Third Generation Aviation Aluminum Gantry

Evolutionary history of gantry crossGantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3ST Generation Aviation Aluminum Beam

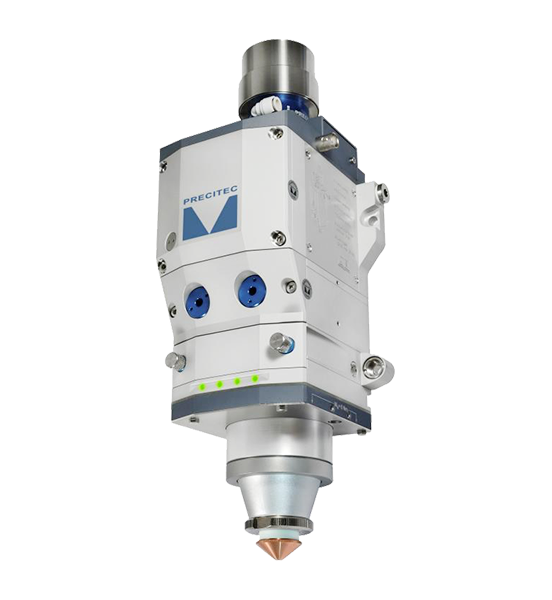

Auto Focus Laser Cutting Head

    Auto Focus Laser Cutting Head

  • Without Manual Focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

  • Bigger Adjustment Range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

  • Long Service Life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

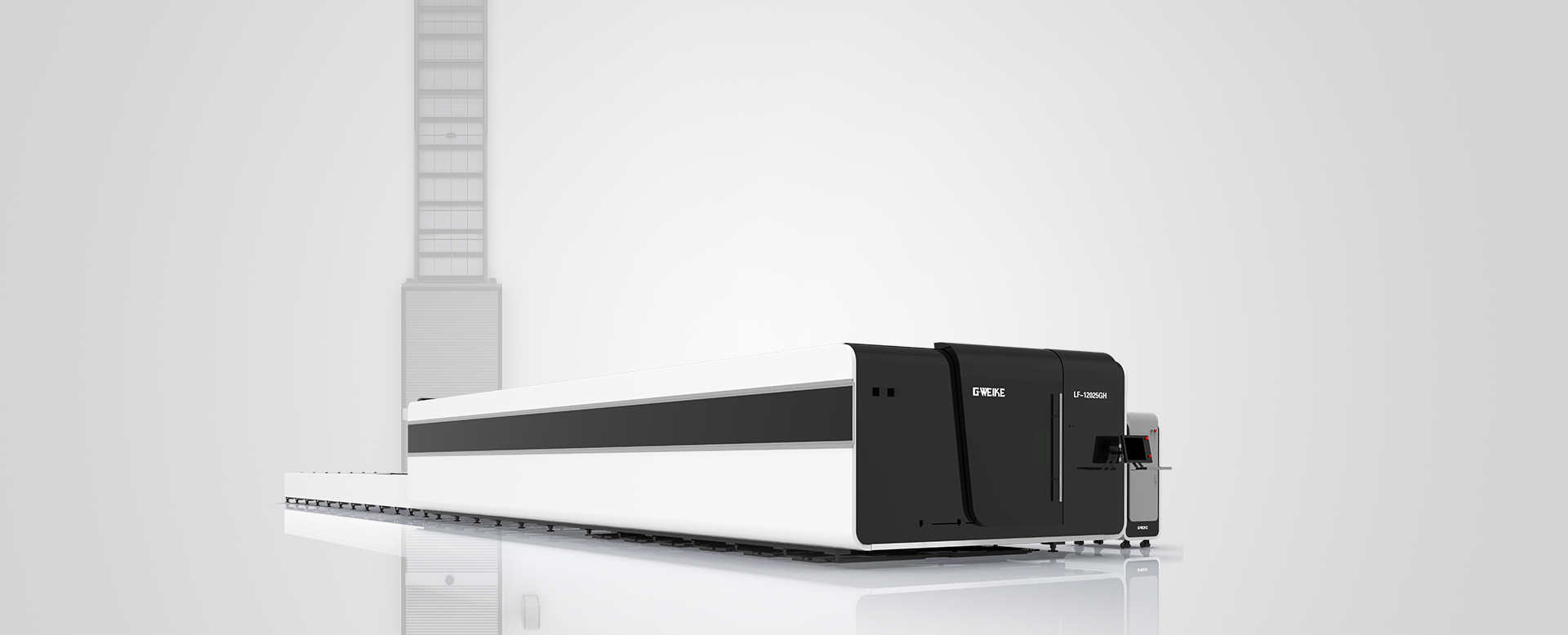

    12M Full-page Thick Plate Cutting: Fast,

    Stable And High Quality

  • Gweike laser large format equipment includes 12025G (12m*2.5m), 10025G (10m*2.5m) The overweight bed process meets the diverse needs of the global market for large sheet metal cutting High-end, high-precision, high-speed, high-format and cost-effective.

full
Auto Focus Laser Cutting Head

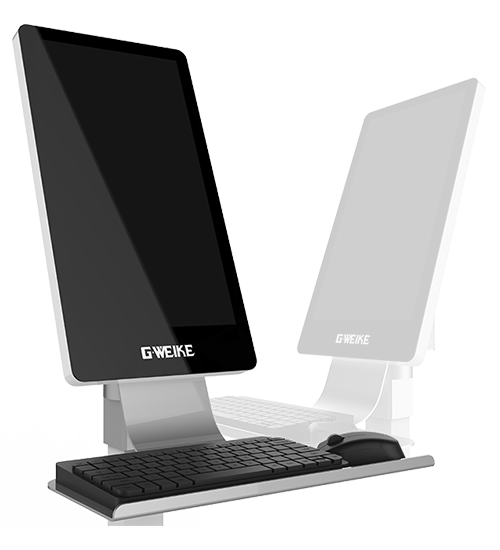

    PAD design display

  • Apple pad design, vertical screen display, wide viewing angle, low power consumption, high resolution and high contrast.

  • The use of high-definition tempered glass, intelligent touch control and fast response speed make the screen more delicate and smooth, and the operation is smoother.

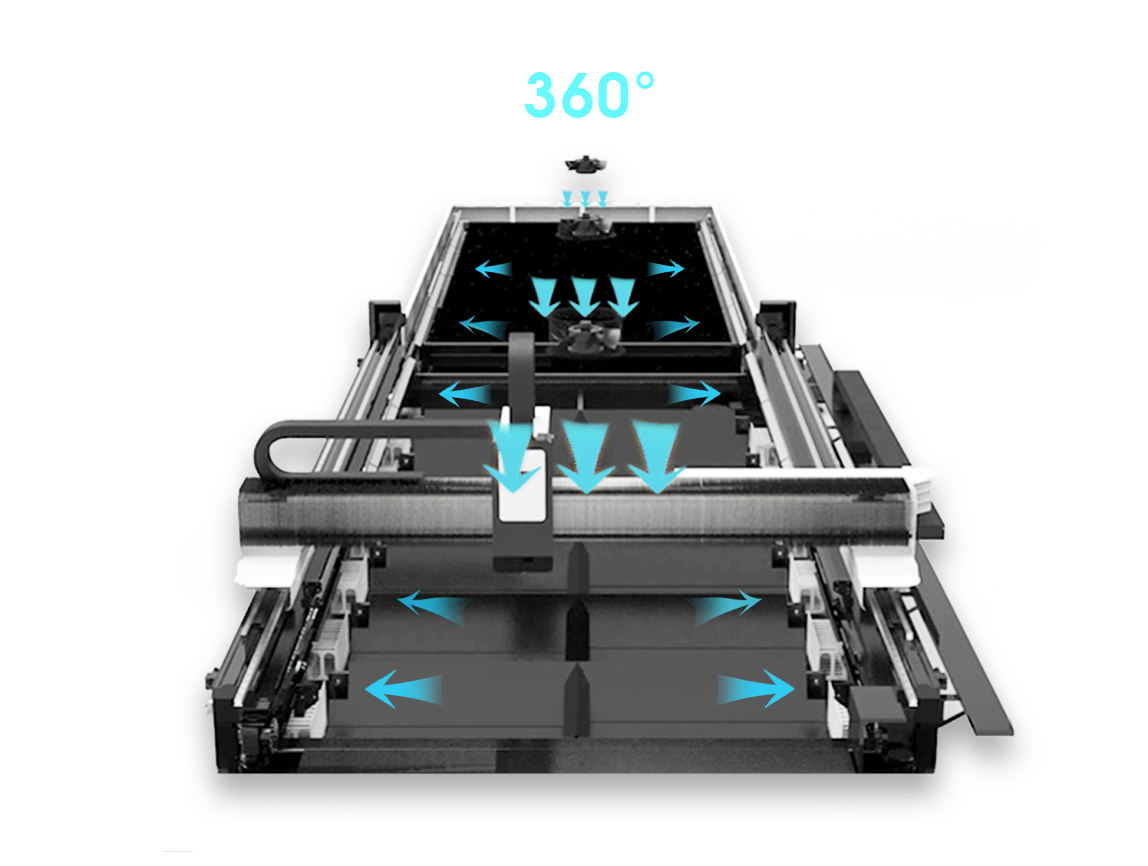

    Segmented smoke exhaust-create a smokeless clean world

  • Full coverage, super suction

    Adopt the latest cutting-edge tobacco control technology Each section of the bed has a smoke exhaust device

  • Powerful negative pressure 360° adsorption

    Axial fan wind direction surrounds blowing smoke downward Full 360° strong adsorption and consistent smoke exhaust Effectively purify the smoke and dust on the top of the enclosed cutting platform Improve purification efficiency and reject lens contamination

  • Net follow-up, wisdom grows by quality

    The smoke exhaust device automatically senses the laser cutting position Turn on precise smoke exhaust, follow-up smart smokingCreate a concealed cavity, fully enclosed smoke control and clean smoke
smoking device

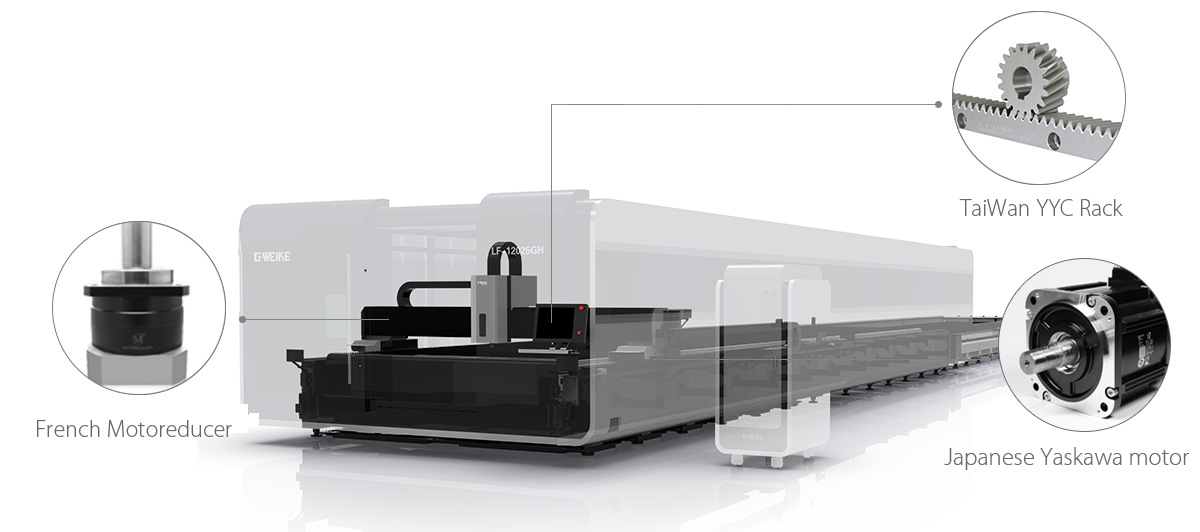

Transmission and Precision

Germany German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with Taiwan YYC rack, Japanese Yaskawa motor and French Motoreducer. The repeat positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 2.5G. The working life is up to 10 years.

German quality

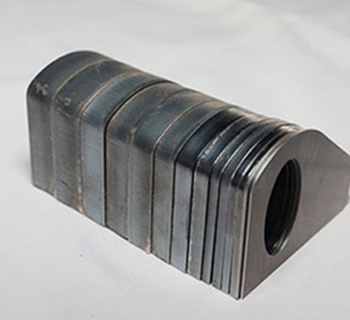

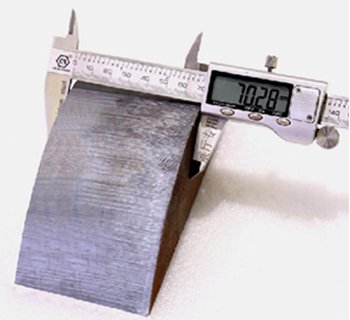

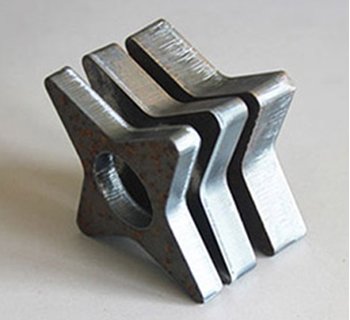

Industry Applications

GH series fiber laser cutting machine can carry up to 12000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Technical Parameters

Machine model LF4020GH LF6025GH LF10025GH LF12025GH
Laser power 8000W 12000W 15000W 20000W(Optional)
Dimensions 11475*2574*5169mm 14937*3952*2287mm 22953.5*4006*2336.5mm 27092*4119*2336.5mm
Working area 4000mm*2000mm 6000mm*2500mm 10000mm*2500mm 12000mm*2500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 200m/min
Max. acceleration 2.5G
Voltage and frequency 380V 50Hz/60HZ
