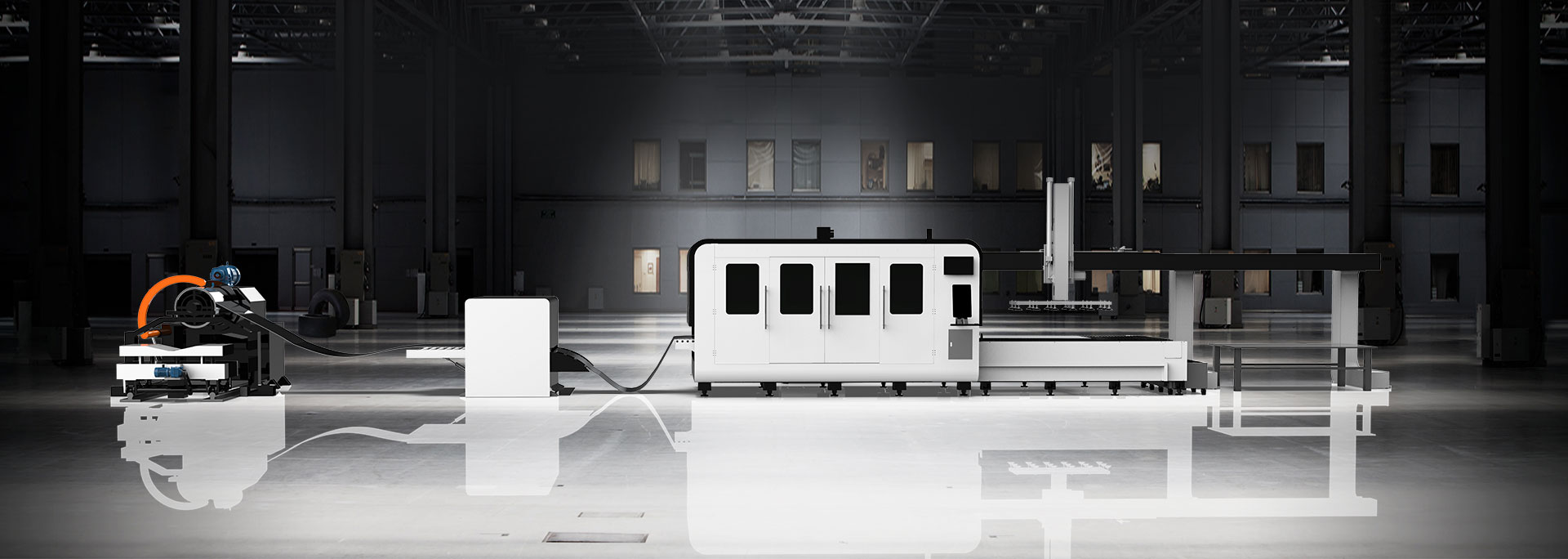

Uncoiling Machine

The uncoiler unwinds the roll material, and the width of the loaded coil material is 100-1300mm; the load is 10000kg.

Leveling part

leveling feeder leveling the material, adjustment accuracy of correction amount: ±0.01.

Fully enclosed laser cutting machine

The bed adopts a gantry dual-drive structure, imported screw rods and linear guide rails, stable transmission, high precision, and online rotation of the hobbing, which ensures high efficiency, high quality, time and labor saving of material processing , Improve material utilization.

Automatic unloading material

Hobbing type conveying structure, vacuum chuck automatic unloading the unloading the finished product , automatic stacking of finished products, saving labor and improving efficiency.

Machine Advantage

Hign material utilization
One key for any piece of material is processing,programming forms the best material discharging mode,realize the cutting of the net material,and improves the utilization rate of the plate.

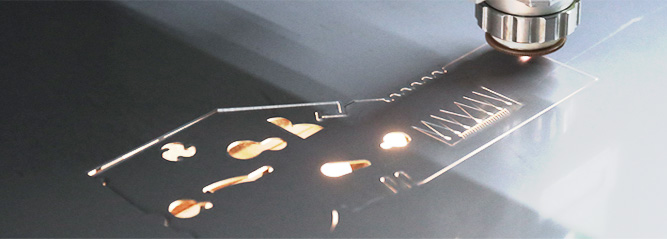

Free-form cutting
It can monitor the running range of the beam and cutting parts throughout the process,and quickly feedback to stop the period,Double protection with fixed limits can greatly improve equipment and personal safety and reduce the risk of customer use.

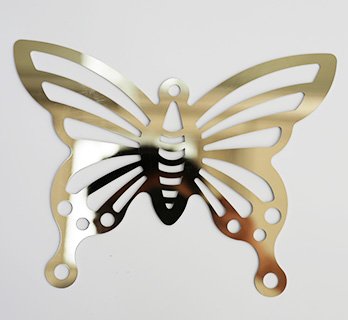

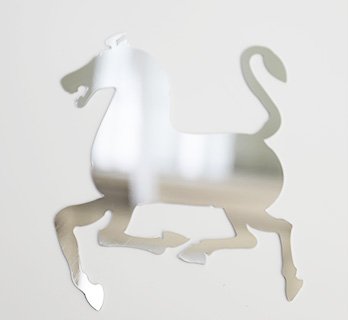

Industry Applications

MB series fiber laser cutting machine can carry up to 4000W laser power, so cutting some thick plate, it is a very good choice. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Technical Parameters

Machine model	LF3015MB
Laser power	1000W/2000W//3000W/4000W(Optional)
Working area	3000mm x 1500mm
Dimensions	(5480+8034)4850(2650+300)mm
Repeat positioning accuracy	±0.03mm
Maximum speed	120m/min
Max. acceleration	1.5G/2.0G
Voltage and frequency	380V 50Hz/60Hz
